I Assume NO RESPONSIBILITY ! for the construction of this Nicad Zapper by You or Someone else!
This page was created for the benefit of Victor owners so they can construct there own Ni-cad Zapper module. This unit requires FCCZ, IQ 3 or IQ 3000
software only. Study the pictures carefully, if there is something you do not understand send me an e-mail, I might not answer all e-mails but if the questions seem to be the same then I will post the answers here. All the parts can be purchase from Digi-Key in the U.S.A. Except for the transformer which can be purchased from the address below...Please Note the following page with wiring changes to the Transformer......Zapper Troubles...
Digi-Key Parts List Quantity Description
SR173B-ND 1 Standard Black Box
J149-ND 7 Standard Banana Plugs
J151-ND 1 Red Banana Jack
J152-ND 1 Black Banana Jack
S6070W-ND 2 Non-Sensitive Gate SCR
P6111-ND 4 4700 ufd 100v capacitors
90.9K BK-ND 1 90.9 K ohm 1% Metal Film resistor
10.0K BK-ND 1 10.0 K ohm 1% Metal Film resistor
100.0 BK-ND 1 100.0 ohm 1% Metal Film resistor
RS404 LMS-ND 1 4 amp Bridge Rectifier
Purchase the transformer for this project from:
(Insilco Technologies Group)
500 Bayview Avenue
Inwood, NY 11096-1792
U.S.A.
Phone (516) 239-5777 Fax (516) 239-7208
Part number of the Transformer is........DP-241-7-20
Misc. Parts:
​
12 gauge silicone wire. 2 feet of each Black and Red
16 gauge silicone wire. 2 feet of each Black and Red
Plastic Spring Clamp See picture below.
Must be an Insulated clamp
I Assume NO RESPONSIBILITY ! for the construction of this Nicad Zapper by You or Someone else!
Completed Ni-Cad Zapper
Bottom Drill Hole Guide actual size.
Save Picture as BMP then print at 100%
Check drill hole pattern with jack field on the Victor charger and transformer mounting holes before drilling the case.
Remember Measure Twice Drill once !
Bottom View
Inside Zapper Wiring
​

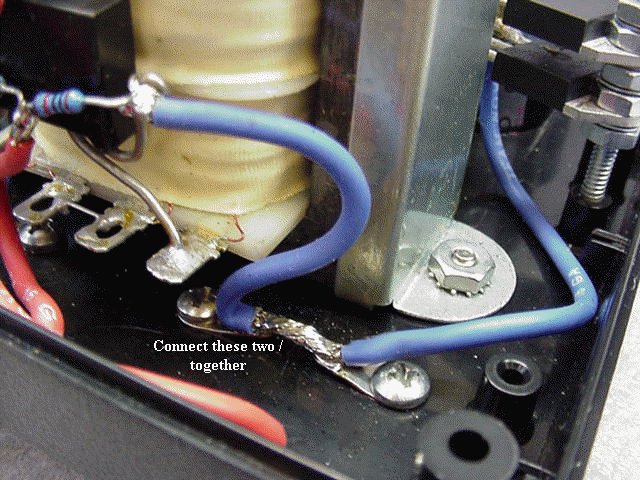

Transformer, Bridge Rectifier and Resistor Wiring
Transformer, Bridge Rectifier and Resistor Wiring
Banana Plug Wiring
Banana Plug Wiring
Banana Plug Wiring
SCR Wiring
SCR Wiring
Original Zapper with Banana Plugs Installed on side of Unit.This is where you connect the main power supply leadsso you can power the Zapper module and Victor unit.
Completed Zapper Unit with Victor Charger
